MSRP • $5,199.99
Color • Satin Carbon/Charcoal-Blue Fade
ALL-MOUNTAIN
CROSS COUNTRY
ENDURO
The Wolf Ridge is the ideal mountain bike, having finally
achieved the promise of riding anything and everything. The
no-compromise Naild R3ACT – 2 Play suspension system uses
advanced kinematics to redefine what full suspension can be
with plush, ground-tracing suspension along with unparalleled
pedaling efficiency. The Wolf Ridge is truly all-mountain, one bike
to rule the ride.

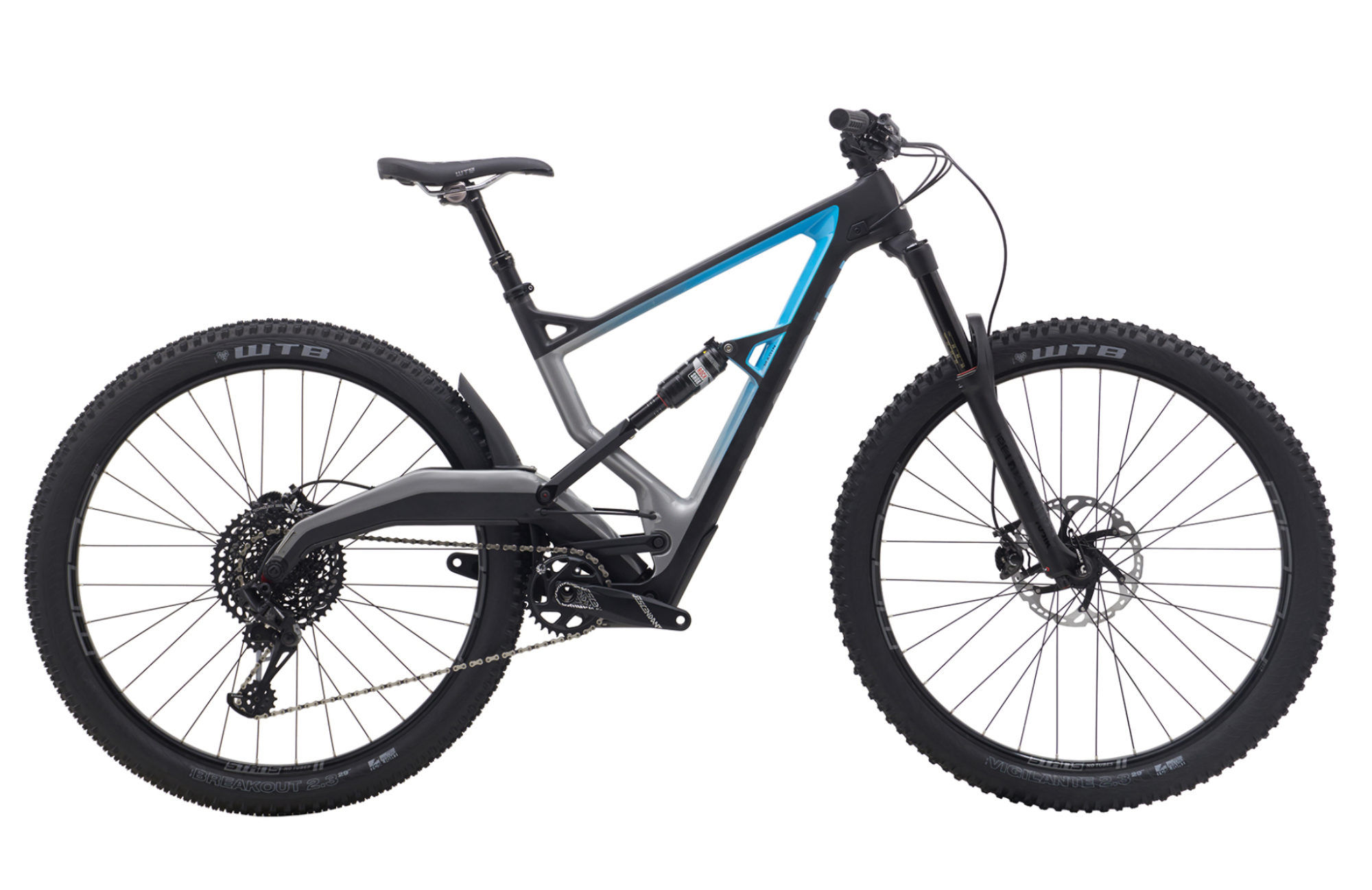

2018 Marin Wolf Ridge 8
FRAME
Full Unidirectional Carbon Fiber Frame, Naild R3ACT – 2 Play Suspension Technology, 160mm Travel, 148mm Boost Rear Spacing, Naild 12-3-9 Locking Quick Release Thru-Axle
FRONT SUSPENSION
RockShox Lyrik RC 29”, 160mm Travel, Compression and Rebound Adjustment, Solo Air Spring, 110x15mm Boost Spacing, Maxle Ultimate, 51mm Offset
REAR SUSPENSION
RockShox Monarch R Debonair, High Volume Eyelet, 200x57mm, Rebound Adjustment, Custom Tune, 25.4mm x M8 Upper Hardware, Custom Lower Hardware
RIMS
Stan’s NoTubes Flow MK3, 29mm Inner, Welded Joint, BST Technology, Tubeless Compatible
HUB REAR
Formula, 148x12mm, Quad Sealed Bearings, 6-Bolt Disc, 32H
HUB FRONT
Formula, 110x15mm, 6-Bolt Disc, 32H
SPOKES
14g Black Stainless Steel
TIRES
F: WTB Vigilante 29x2.3" R: WTB Breakout, 29x2.3", TCS Light/Fast, Tubeless Compatible
DERAILLEUR REAR
SRAM GX Eagle 12-Speed
DERAILLEUR FRONT
- - -
SHIFT LEVER
SRAM GX Eagle 1x12-Speed
CRANKSET
SRAM Descendant 6K Aluminum, Direct Mount 12-Speed 34T, Boost Spacing
BOTTOM BRACKET
External Sealed Cartridge Bearings
CHAIN
SRAM GX Eagle
CASSETTE
SRAM XG-1275 12-Speed, 10-50T
BRAKES FRONT
Shimano XT M8000 Hydraulic Disc, 203mm Rotor
BRAKES REAR
Shimano XT M8000 Hydraulic Disc, 180mm Rotor
BRAKE LEVERS
Shimano XT M8000 Hydraulic
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 25mm Rise, 780mm Width, 4º Up, 9º Back
STEM
Marin 3D Forged Alloy, 45mm
GRIPS
Marin Locking
HEADSET
FSA No 42/ACB, Sealed Cartridge Bearings, 1 1/8"x 1 1/2”
SEATPOST
KS LEV SIO Dropper Post, Custom Offset Head, Southpaw Lever, Size S 120mm Travel, All Other Sizes: 150mm Travel
SADDLE
WTB Volt Race
PEDALS
- - -
SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE
